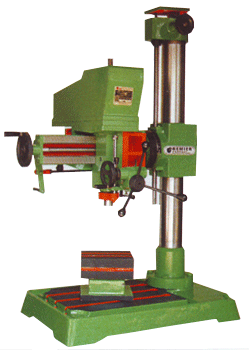

25 mm Universal Radial Drill Machine |
|
Specification |
Model |
|
Drilling Capacity (in Mild Steel) |
25 mm |
|
Pillar Diameter |
125 mm |
|
Spindle nose to table distance |
410 mm |
|
Spindle nose to base distance |
660 mm |
|
Distance from Spindle centre to Pillar
face |
670 mm |
|
Taper in Spindle |
MT.3 |
|
Number of Speed |
8 Speed |
|
Range of Speed |
90 to 2300 RPM |
|
Table Size |
250 x 200 x 200 mm |
|
Base Size (Machined Area) |
500 x 600 mm |
|
Overall Base Size |
925 x 600 mm |
|
Spindle Travel |
220 mm |
|
Pillar Length |
1220 mm |
|
Overall height with pulley Guard |
1425 mm |
|
V. Belt Section |
B. 43" & A. 23" |
|
Weight (Approx) |
500 Kgs |
|
Motor 1440 RPM 3 Phase 440 Volts |
1 HP & 0.5 HP |
